Things used in this project

Hardware components:
11114 01a
SparkFun Arduino Pro Mini 328 - 3.3V/8MHz
×1
51gzz5eu9pl. sx425

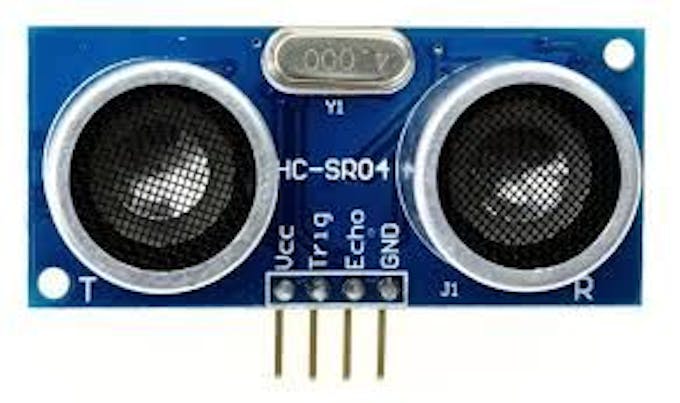

HC-SR04
×3
Adafruit industries ada1536 image
Buzzer
×1
Mobile phone vibrator
×2
Gus 1719
C.H.I.P. Approved 3.7 V LiPo Battery
×1

Code

FIZZQV0IZ6D1PFF.inoArduino
#define trigPin1 A0
#define echoPin1 A1

#define trigPin2 A2
#define echoPin2 A3

#define trigPin3 A4
#define echoPin3 A5


#define motor1 5
#define motor2 6
#define buzzer 3

void setup()
{
pinMode(trigPin1, OUTPUT);

pinMode(echoPin1, INPUT);

pinMode(trigPin2, OUTPUT);

pinMode(echoPin2, INPUT);

pinMode(trigPin3, OUTPUT);

pinMode(echoPin3, INPUT);


pinMode(motor1, OUTPUT);

pinMode(motor2, OUTPUT);

pinMode(buzzer,OUTPUT);

}

void loop()

{

long duration, distance;

digitalWrite(trigPin1, LOW);

delayMicroseconds(2);

digitalWrite(trigPin1, HIGH);

delayMicroseconds(1);

digitalWrite(trigPin1, LOW);

duration = pulseIn(echoPin1, HIGH);

distance = (duration/2) / 29.1;

if (distance < 45)

{



digitalWrite(buzzer,HIGH);

} else

{



digitalWrite(buzzer,LOW);

} delay(50);



digitalWrite(trigPin2, LOW);

delayMicroseconds(2);

digitalWrite(trigPin2, HIGH);

delayMicroseconds(1);

digitalWrite(trigPin2, LOW);

duration = pulseIn(echoPin2, HIGH);

distance = (duration/2) / 29.1;

if (distance < 40)

{

digitalWrite(motor1,HIGH);



} else

{

digitalWrite(motor1,LOW);



} delay(100);




digitalWrite(trigPin3, LOW);

delayMicroseconds(2);

digitalWrite(trigPin3, HIGH);

delayMicroseconds(2);

digitalWrite(trigPin3, LOW);

duration = pulseIn(echoPin3, HIGH);

distance = (duration/2) / 29.1;

if (distance < 30)

{

digitalWrite(motor2,HIGH);

} else

{

digitalWrite(motor2,LOW);



} delay(100);

}
