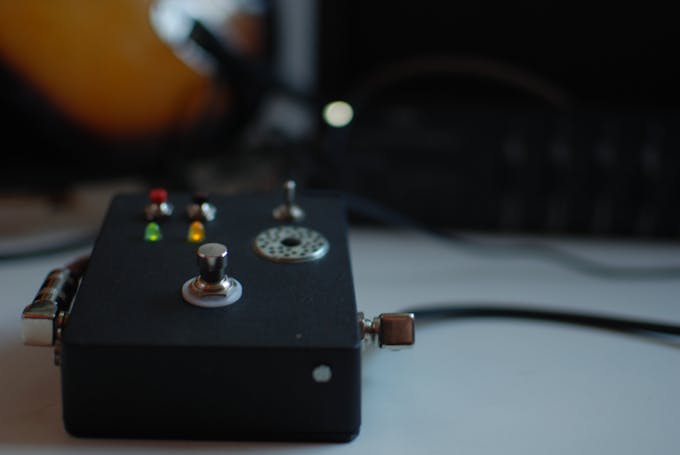

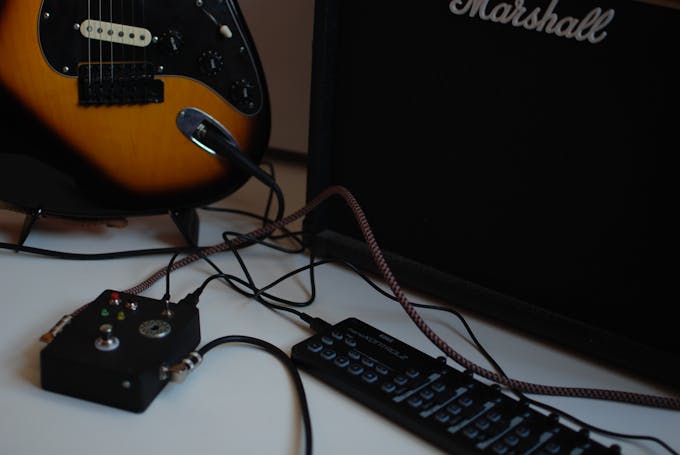

Things used in this project

Hardware components:
Stmicroelectronics l7805cv image
Linear Regulator (7805)
×1
Chip%20v1
C.H.I.P.
×1
Adafruit industries ada258 image 75px
Li-Ion Battery 1000mAh
×1
1590BBBK case
×1
Software apps and online services:
jack server
invada lv2 plugins
mod-host

Schematics

General schematics (Fritzing file)
Hzo2ELmJXUqZ1MKAC02i.fzz
General schematics (PNG)
Hqjwtx0bboohvl3xgokq
Bill Of Materials
List of components needed

Code

mod-host commands file for 3chorus effectsnippets
Commands to be executed by mod-host software in order to launch a 3chorus effect using an lv2 plugin
add http://drobilla.net/plugins/fomp/triple_chorus 0
connect system:capture_1 effect_0:in
connect a2j_bridge:capture mod-host:midi_in
connect effect_0:out1 mod-host:monitor-in_1
param_set 0 delay 0.1
param_set 0 mod_freq_1 1
param_set 0 mod_amp_1 1
param_set 0 mod_freq_2 1
param_set 0 mod_amp_2 2
midi_map 0 mod_amp_2 129 3 0 10
script for managing reset button and ledsSH
This script is executed in background, so when you press the red button for a short time, it resets the unit, and if you press it for longer, it shuts it down.
#!/bin/sh

# Kernel 4.3
# 408 - LED
# 409 - S1
# 410 - S2
# 411 - B1 ROJO -> RESET/SHUTDOWN
# 412 - B2

mode=$1
mode_orig=$mode

while [ 1 ]
do
   sleep 1
   v411=`cat /sys/class/gpio/gpio411/value`
   v409=`cat /sys/class/gpio/gpio409/value`
   v410=`cat /sys/class/gpio/gpio410/value`
   v412=`cat /sys/class/gpio/gpio412/value`

   # echo $v411
   if [ $v411 -eq 1 ]
   then
      amixer -c 0 cset numid=7 off
      sleep 5
      v411=`cat /sys/class/gpio/gpio411/value`
      if [ $v411 -eq 1 ]
      then
         shutdown -h 0
      else
         shutdown -r 0
      fi
      while [ 1 ]
      do
	sleep 1
        echo 1 > /sys/class/gpio/gpio408/value
        sleep 1
	echo 0 > /sys/class/gpio/gpio408/value
      done
   fi
   if [ $v411 -eq 1 ]
   then
      # Black button pressed
      echo "Black button " >> /var/log/pop.log
   fi
   if [ "$v409" -eq 1 ] && [ "$v410" -eq 0 ]
   then
      mode=mnt
   elif [ "$v409" -eq 1 ] && [ "$v410" -eq 1 ]
   then
      mode=p2
   elif [ "$v409" -eq 0 ] && [ "$v410" -eq 1 ]
   then
      mode=p1
   fi
   if [ "$mode" = "p1" ]
   then
      pop_script="pop_p1.sh"
   fi
   if [ "$mode" = "p2" ]
   then
      pop_script="pop_p2.sh"
   fi
   if [ "$mode" = "mnt" ]
   then
      pop_script="pop_mnt.sh"
   fi

   if [ "$mode" != "$mode_orig" ]
   then
      mode_orig=$mode
      echo 1 > /sys/class/gpio/gpio408/value
      killall jackd
      killall mod-host
      killall a2jmidi_bridge
      /sbin/runuser -l chip /home/chip/${pop_script} >> /var/log/pop.log 2>&1 &
   fi
done
script for initializing pedalSH
It is launched when booting the unit, and depending on switch position, executes a different script
#!/bin/sh
set -x
# Kernel 4.3
# 408 - LED
# 409 - S1 - posición abajo
# 410 - S2 - posición arriba
# 411 - B1 ROJO -> RESET/SHUTDOWN
# 412 - B2 NEGRO

echo 408 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio408/direction
echo 1 > /sys/class/gpio/gpio408/value
echo 409 > /sys/class/gpio/export
echo in > /sys/class/gpio/gpio409/direction
echo 410 > /sys/class/gpio/export
echo in > /sys/class/gpio/gpio409/direction
echo 411 > /sys/class/gpio/export
echo in > /sys/class/gpio/gpio409/direction
echo 412 > /sys/class/gpio/export
echo in > /sys/class/gpio/gpio409/direction

v409=`cat /sys/class/gpio/gpio409/value`
v410=`cat /sys/class/gpio/gpio410/value`
echo $v409
echo $v410

# 408=1 409=0 -> Mantenimiento, switch abajo
# 408=1 409=1 -> Switch enmedio
# 408=0 409=1 -> Switch arriba

if [ "$v409" -eq 1 ] && [ "$v410" -eq 0 ]
then
   mode=mnt
elif [ "$v409" -eq 1 ] && [ "$v410" -eq 1 ]
then
   mode=p2
elif [ "$v409" -eq 0 ] && [ "$v410" -eq 1 ]
then
   mode=p1
fi
echo $mode

if [ "$mode" != "mnt" ]
then
   echo "iface wlan0 inet manual" > /etc/network/interfaces
else
   :> /etc/network/interfaces
fi

/usr/local/bin/pop_loop.sh $mode &

if [ "$mode" = "p1" ]
then
    pop_script="pop_p1.sh"
fi
if [ "$mode" = "p2" ]
then
    pop_script="pop_p2.sh"
fi
if [ "$mode" = "mnt" ]
then
    pop_script="pop_mnt.sh"
fi
date >> /var/log/pop.log
echo 1 > /sys/class/gpio/gpio408/value
chmod 777 /sys/class/gpio/gpio408/value
/sbin/runuser -l chip /home/chip/${pop_script} >> /var/log/pop.log 2>&1 &
mod-host commands for a delay effectsnippets
add http://invadarecords.com/plugins/lv2/delay/mono 0
connect system:capture_1 effect_0:in
connect midi_controller:capture mod-host:midi_in
connect effect_0:outL mod-host:monitor-in_1
connect system:capture_1 system:playback_1
param_set 0 delay1 0.2
param_set 0 fb1 25
midi_map 0 delay1 0 0 0 2
midi_map 0 delay2 0 1 0 2
midi_map 0 fb1 0 16 0 133
midi_map 0 fb2 0 17 0 133
midi_map 0 vol1 0 2 0 100
midi_map 0 vol2 0 3 0 100
script for launching audio software - P1SH
script that is run when switch is in position 1 (up)
#!/bin/sh
sudo rmmod snd_usb_audio
sudo rmmod snd_usbmidi_lib
sudo rmmod snd_rawmidi

sudo insmod ./snd-seq-device.ko
sudo insmod ./snd-seq.ko
sudo insmod ./snd-rawmidi.ko
sudo insmod ./snd-seq-midi-event.ko
sudo insmod ./snd-seq-midi.ko
sudo insmod ./snd-usbmidi-lib.ko
sudo insmod ./snd-usb-audio.ko
amixer -c 0 cset numid=7 on
sleep 4
/usr/local/bin/jackd -P70 -R -t2000 -dalsa -dhw:0 -r48000 -p256 -n3 -S -s -i 1 -o 1  &
sleep 2
a2jmidi_bridge midi_controller  &
sleep 2
aconnect 20:0 129:0
aconnect 20:0 128:0
cd /home/chip/lv2
/usr/local/bin/led_on.sh
./mod-host.sh delay
script for launching audio software - P2SH
#!/bin/sh
sudo rmmod snd_usb_audio
sudo rmmod snd_usbmidi_lib
sudo rmmod snd_rawmidi

sudo insmod ./snd-seq-device.ko
sudo insmod ./snd-seq.ko
sudo insmod ./snd-rawmidi.ko
sudo insmod ./snd-seq-midi-event.ko
sudo insmod ./snd-seq-midi.ko
sudo insmod ./snd-usbmidi-lib.ko
sudo insmod ./snd-usb-audio.ko
amixer -c 0 cset numid=7 on
sleep 4
/usr/local/bin/jackd -P70 -R -t2000 -dalsa -dhw:0 -r48000 -p256 -n3 -S -s -i 1 -o 1  &
sleep 2
a2jmidi_bridge midi_controller &
sleep 2
aconnect 20:0 129:0
aconnect 20:0 128:0
cd /home/chip/lv2
/usr/local/bin/led_on.sh
./mod-host.sh compressor
script for launching audio software - P2 (alternative for supercollider)SH
Script run in position 2 (middle) for launching a supercollider effect
#!/bin/sh
sudo rmmod snd_usb_audio
sudo rmmod snd_usbmidi_lib
sudo rmmod snd_rawmidi

sudo insmod ./snd-seq-device.ko
sudo insmod ./snd-seq.ko
sudo insmod ./snd-rawmidi.ko
sudo insmod ./snd-seq-midi-event.ko
sudo insmod ./snd-seq-midi.ko
sudo insmod ./snd-usbmidi-lib.ko
sudo insmod ./snd-usb-audio.ko
amixer -c 0 cset numid=7 on
sleep 4
/usr/local/bin/jackd -R -t1000 -dalsa -dhw:0 -r48000 -p256 -n2 -S -s &
#sleep 3
#a2jmidi_bridge midi_controller &
#sleep 3
#aconnect 20:0 128:0
sleep 2
mkfifo /tmp/sc.fifi
cat /tmp/sc.fifi | sclang -D /home/chip/patch.sc &
script for launching audio software - MNTSH
Script that is run when switch is in position MNT (down)
#!/bin/sh
sudo rmmod snd_usb_audio
sudo rmmod snd_usbmidi_lib
sudo rmmod snd_rawmidi

sudo insmod ./snd-seq-device.ko
sudo insmod ./snd-seq.ko
sudo insmod ./snd-rawmidi.ko
sudo insmod ./snd-seq-midi-event.ko
sudo insmod ./snd-seq-midi.ko
sudo insmod ./snd-usbmidi-lib.ko
sudo insmod ./snd-usb-audio.ko
amixer -c 0 cset numid=7 on
sleep 4
/usr/local/bin/jackd -P70 -R -t2000 -dalsa -dhw:0 -r48000 -p256 -n3 -S -s -i 1 -o 1  &
sleep 2
a2jmidi_bridge midi_controller  &
sleep 2
aconnect 20:0 129:0
aconnect 20:0 128:0
cd /home/chip/lv2
/usr/local/bin/led_on.sh
./mod-host.sh reverb
Supercollider effect exampleSH
supercollider code for an tremolo-delay effect. There are several synths defined that are not finally connected, but can be used by modifying the sc file. Supercollider has to be compiled from source in order to work on CHIP board.
(

s.waitForBoot(
{

SynthDef("octaver",{ arg out=0, in=0, octdown=1, octup=1, wet=1, gate=1;
    var input,efx,mixed, up, down;
    input = SoundIn.ar(in, 1);
	up = PitchShift.ar(input,0.1,2,0,0.004);
	down = PitchShift.ar(input,0.1,0.5,0,0.004);
	mixed = input + wet*gate*octup*up + wet*gate*octup*down;
	Out.ar([out, out+1], mixed);
}).load(s);

SynthDef("phaser",{ arg out=0, in=0, rate=1, range=2, wet=1, gate=1;
    var input, fft, fft2, shifted, mixed;
    input = SoundIn.ar(in, 1);
    fft = FFT(LocalBuf(2048), input);
	fft2 = FFT(LocalBuf(2048), input);
    shifted = PV_PhaseShift(
			fft,
			pi*range*LFPar.kr(
					rate,
					0,
					1,
					0),
			1
			);
	mixed = wet*gate*2*IFFT(fft2) + IFFT(shifted);
	Out.ar([out, out+1], mixed);
}).load(s);

SynthDef("reverb", { arg out=0, in=0, wet=1, gate=1 ;
	// in and env come from the wrapper.
	var input, dsig, mixed, local;
	input = SoundIn.ar(in, 1);
    local = LocalIn.ar(1);
	16.do({ local = AllpassC.ar(input + local, 0.04, Rand(0.001,0.04), 3)});
	mixed = input + gate*wet*local;
	LocalOut.ar(mixed);
	Out.ar([out, out+1], mixed);
}).load(s);


SynthDef("tremolo",{ arg out=0, in=0, rate=1, wet=1, gate=1;
    var input,efx,mixed;
    input = SoundIn.ar(in, 1);
	efx = gate*input*LFPar.kr(rate,0,wet,0);
	mixed = 0.5*input + 0.5*efx;
	Out.ar([out, out+1], mixed);
}).load(s);


SynthDef("delay", { arg out=0, in=0, wet=1, gate=1, delay=0.5, fdbk=0.0, decay=0.0 ;

	var input, maxdelay, dsig, mixed, local;
    maxdelay = 1.0;
    input = In.ar(in, 1);
    local = LocalIn.ar(1);
    dsig = AllpassL.ar( // the delay (you could use AllpassC (put 0 in decay))
        input + (local * fdbk),
        maxdelay * 2,
        delay * maxdelay,
        decay);
    mixed = 0.5*input + 0.5*gate*wet*dsig;
    LocalOut.ar(mixed);
    Out.ar([out, out+1], mixed);
}).load(s);

SynthDef("level",{ arg out=0, in=0, v=1, tone=1200;
    var input,level,mixed;
    input = In.ar(in, 1);
	level = v*BBandPass.ar(input,tone+100, 3);
	Out.ar([out, out+1], level);
}).load(s);

c = Synth.new("tremolo", [\in, 0], addAction:\addToHead);
c.set(\wet, 0.8);
c.set(\gate, 1);
c.set(\rate, 3.5);

e = Synth.after(c,"delay", [\in, 0]);
e.set(\delay, 0.2);
e.set(\fdbk, 0.10);
e.set(\decay, 0.30);
e.set(\wet, 0.80);
e.set(\gate, 1);



MIDIIn.connectAll;


MIDIdef.cc(\reverbbypass, {arg value; value.postln; if (value == 0,
			{ "Reverb off".postln;
				c.set(\gate,0);
			},
			{ "Reverb on".postln;
				c.set(\gate,1);
			}
		)},32);

MIDIdef.cc(\tremolowet, {arg value; c.set(\wet, value/127);value.postln},16);
MIDIdef.cc(\tremolorate, {arg value; c.set(\wet, value/10);value.postln},0);

MIDIdef.cc(\delaybypass, {arg value; value.postln; if (value == 0,
			{ "Delay off".postln;
				e.set(\gate,0);
			},
			{ "Delay on".postln;
				e.set(\gate,1);
			}
		)},37);
MIDIdef.cc(\delaytime, {arg value; e.set(\delay, value/10);value.postln},21);
MIDIdef.cc(\delayfb, {arg value; e.set(\fdbk, value/10);value.postln},22);
MIDIdef.cc(\delaywet, {arg value; e.set(\wet, value/10);value.postln},5);
//MIDIdef.cc(\delaydecay, {arg value; e.set(\decay, value/10);value.postln},6);


})

)
LED on scriptSH
Script for setting the green led to on
#!/bin/sh
echo 0 > /sys/class/gpio/gpio408/value
GITHUB repository
Visit or clone this repository for latest code

Credits

Ea20ab670b3d2216dd377afdd0fe0f52
Manuel Guerrero Escobar

I am a professional engineer and amateur musician.

Contact

Replications

Did you replicate this project? Share it!

I made one

Love this project? Think it could be improved? Tell us what you think!

Give feedback

Comments

Similar projects you might like

CHIPBOOK
Advanced
  • 5,386
  • 18

Full instructions

Make Your Own NOTEBOOK Using CHIP.

C.H.I.P. 'n Say!
Advanced
  • 4,500
  • 13

Full instructions

Teach your See 'n Say to say more than just animal noises!

Touched by Time – Cyborgism
Advanced
  • 1,824
  • 17

I have no “sense" of time - can I develop one? Tempo is a wearable device that feeds time data to my skin through vibration patterns.

PillCare
Advanced
  • 1,156
  • 4

Work in progress

PillCare is a device/system for your pill-box that keeps the record of your daily medicine intake and sends an E-mail/Message to the doctor

Dial a Grue
Advanced
  • 365
  • 2

Work in progress

Allows you to play classic text adventure games (like Zork) using an old rotary phone.

Add projectSign up / Login
